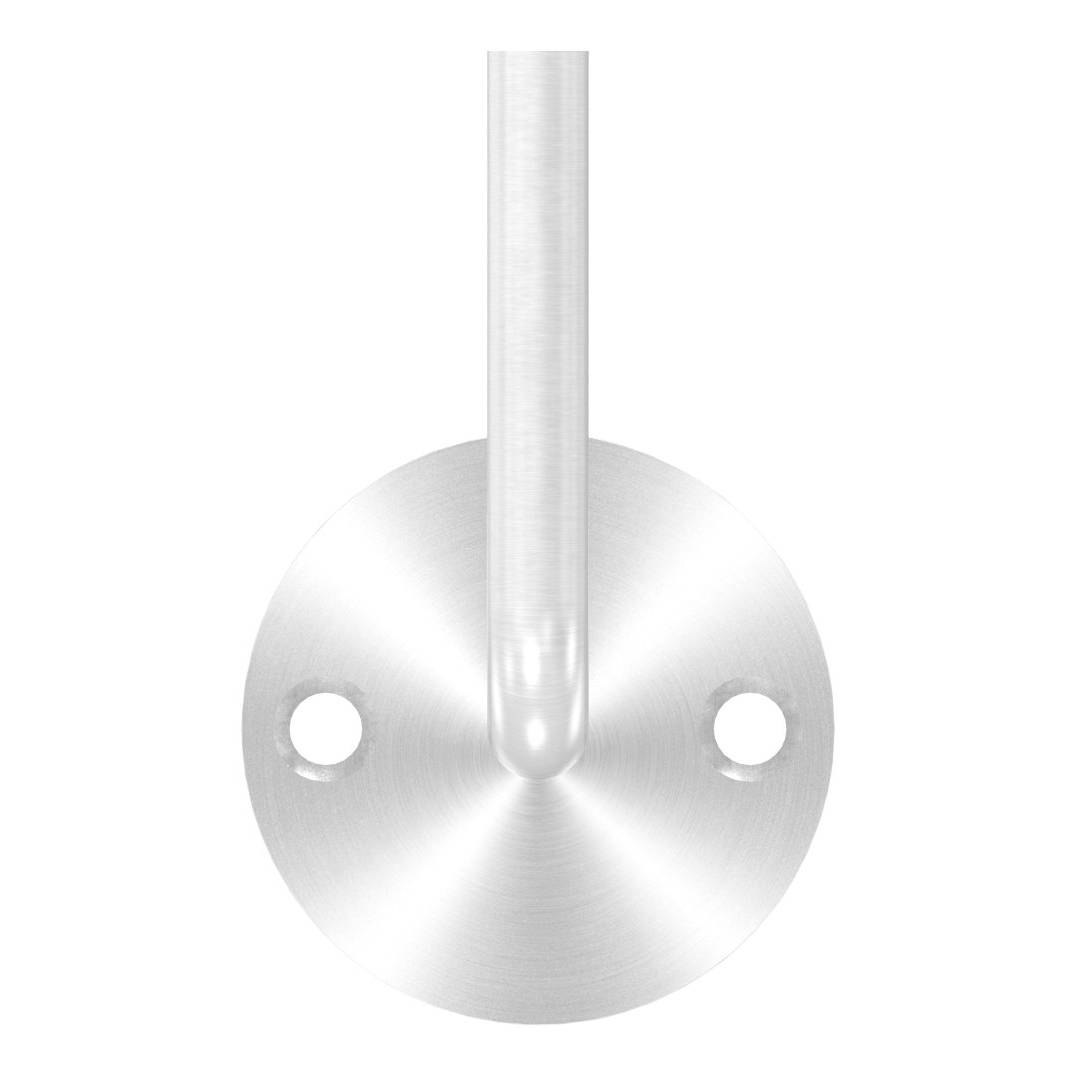

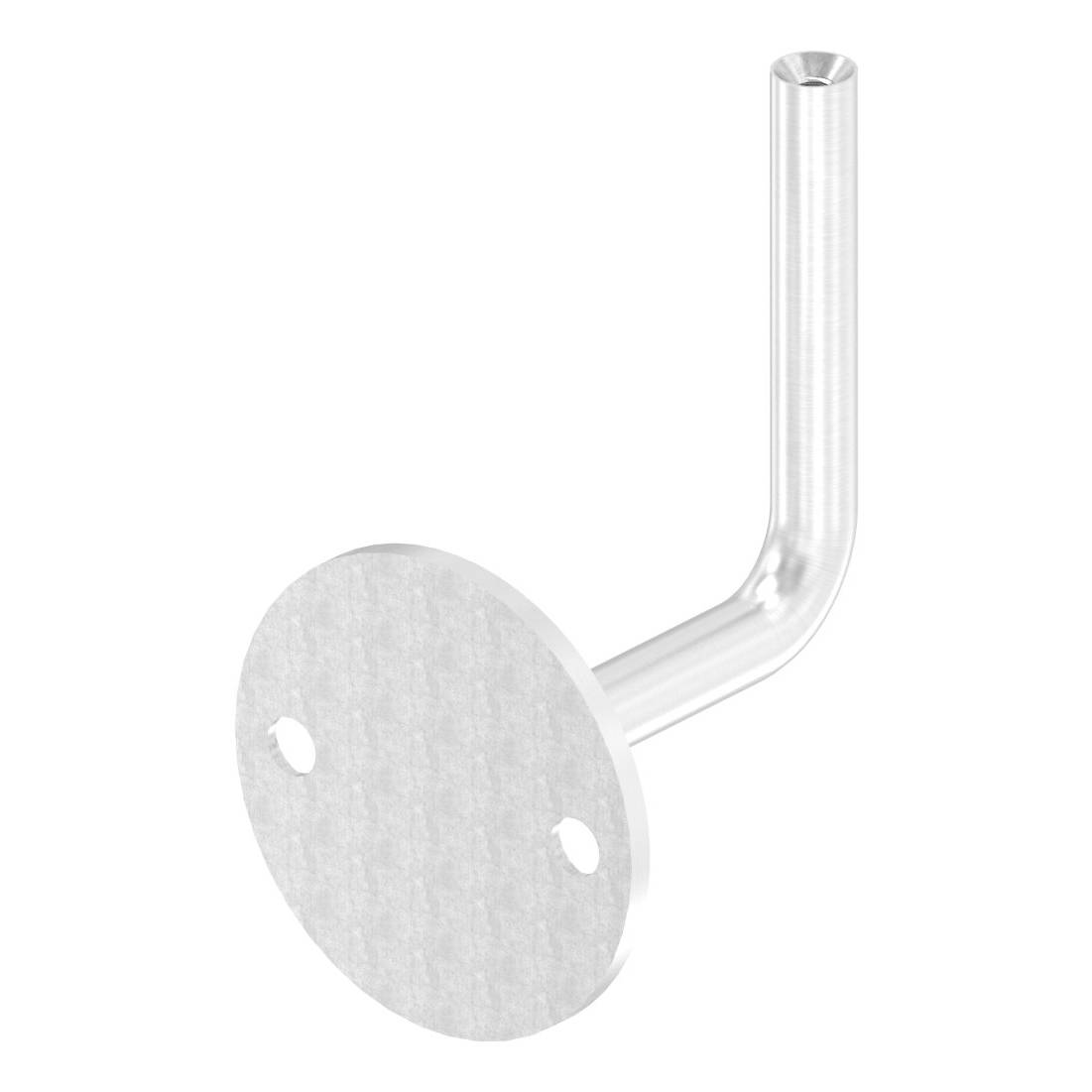

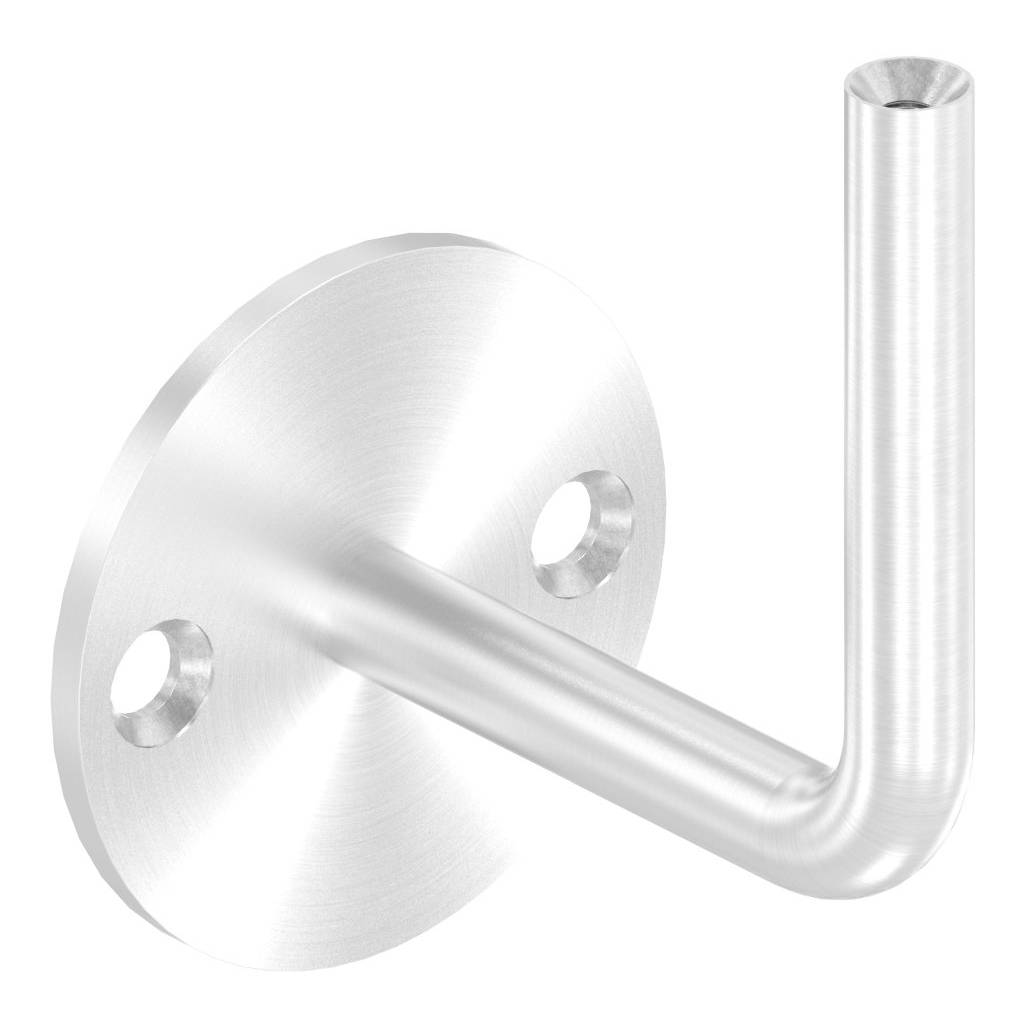

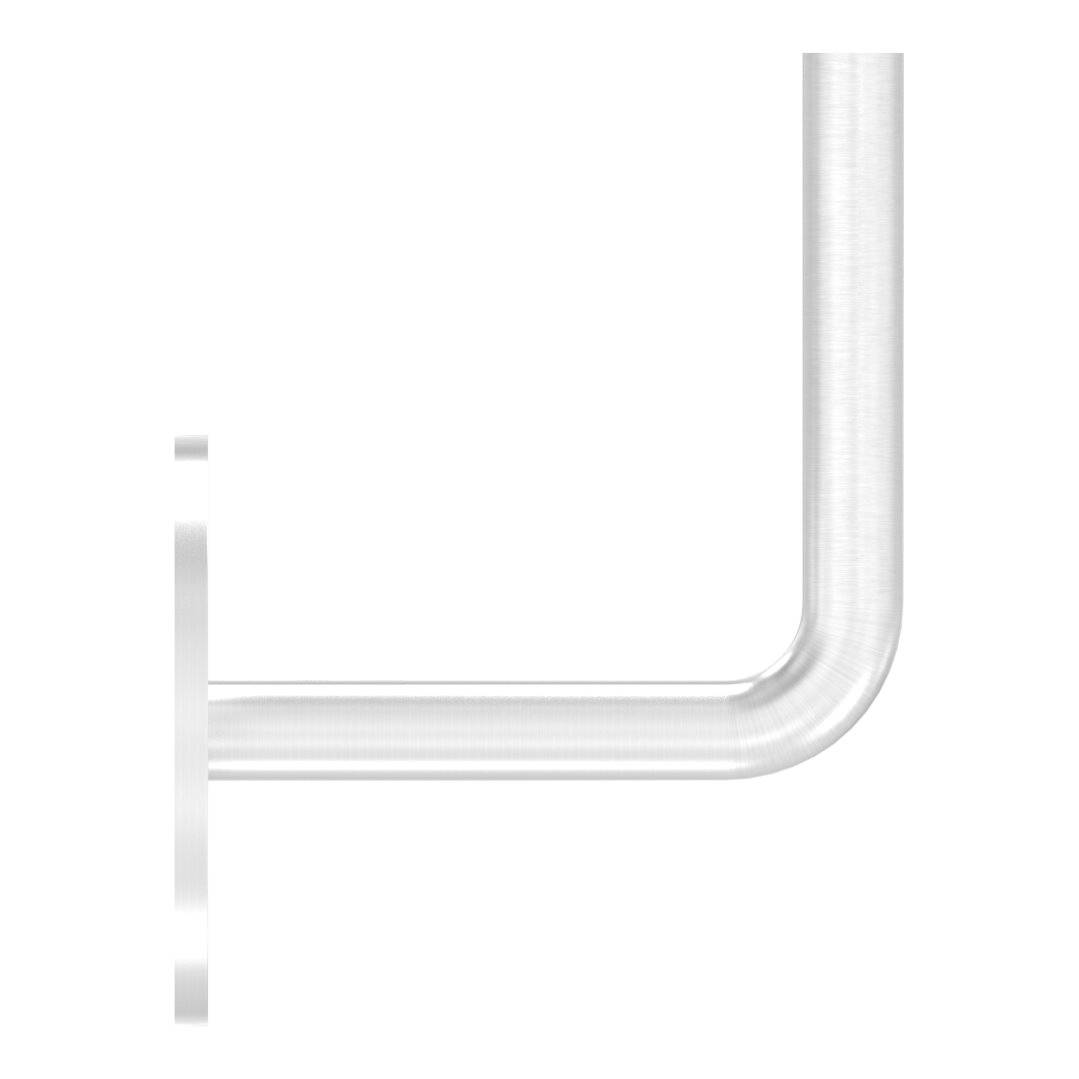

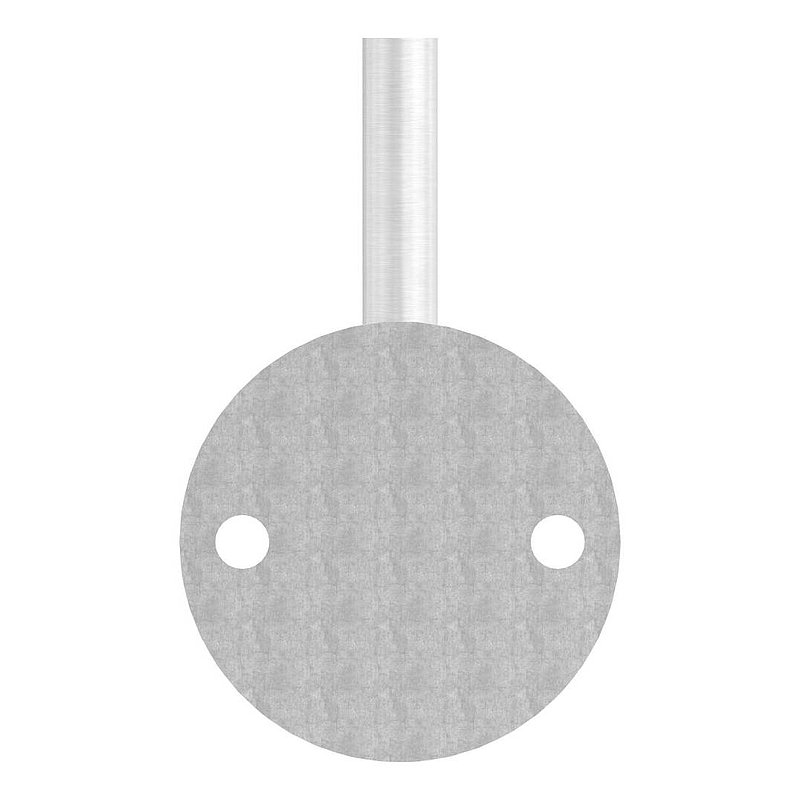

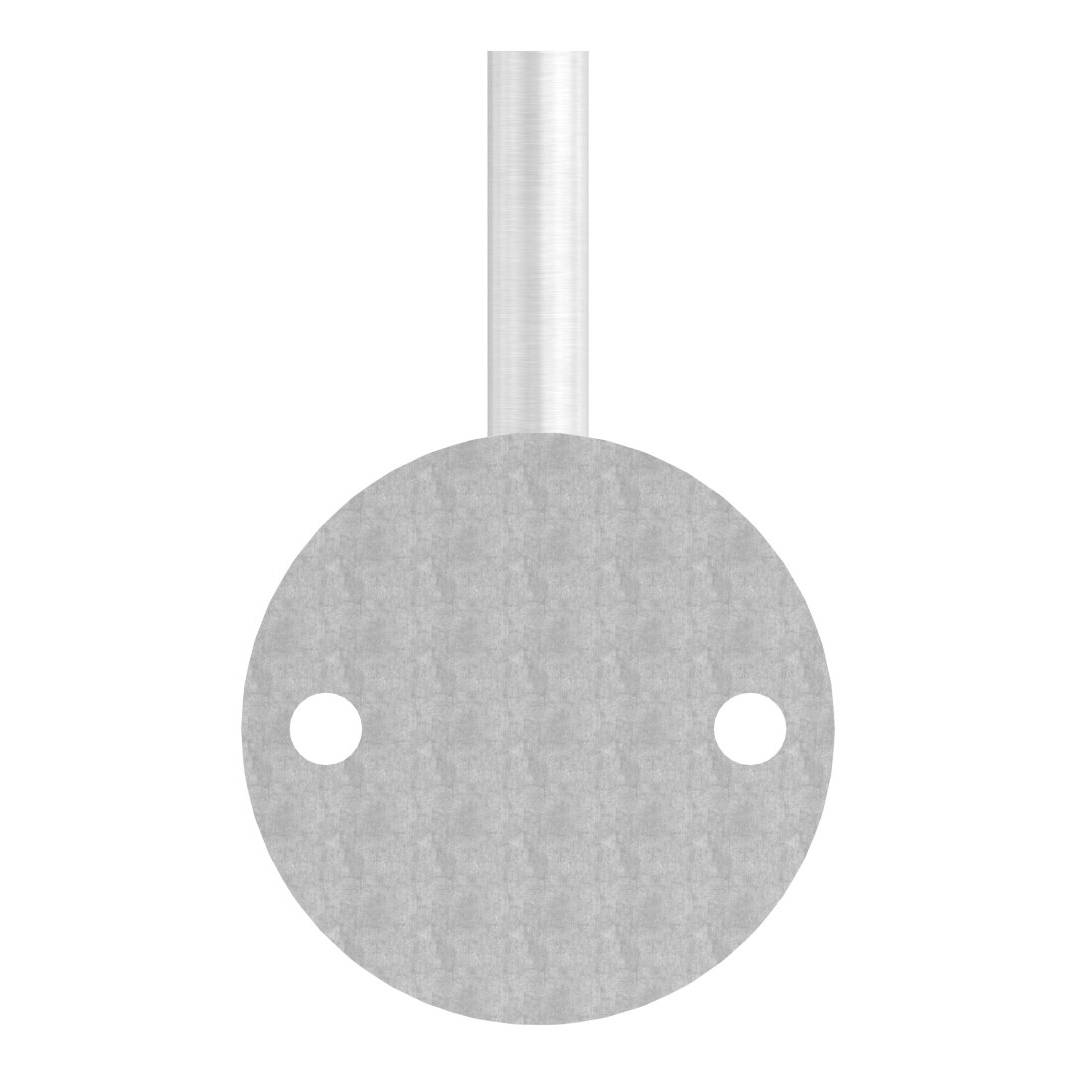

Handrail bracket with M6 internal thread (disc and bracket welded), AISI304
Art-Nr.50303-240-V|In stock·Delivery by21.Sep.

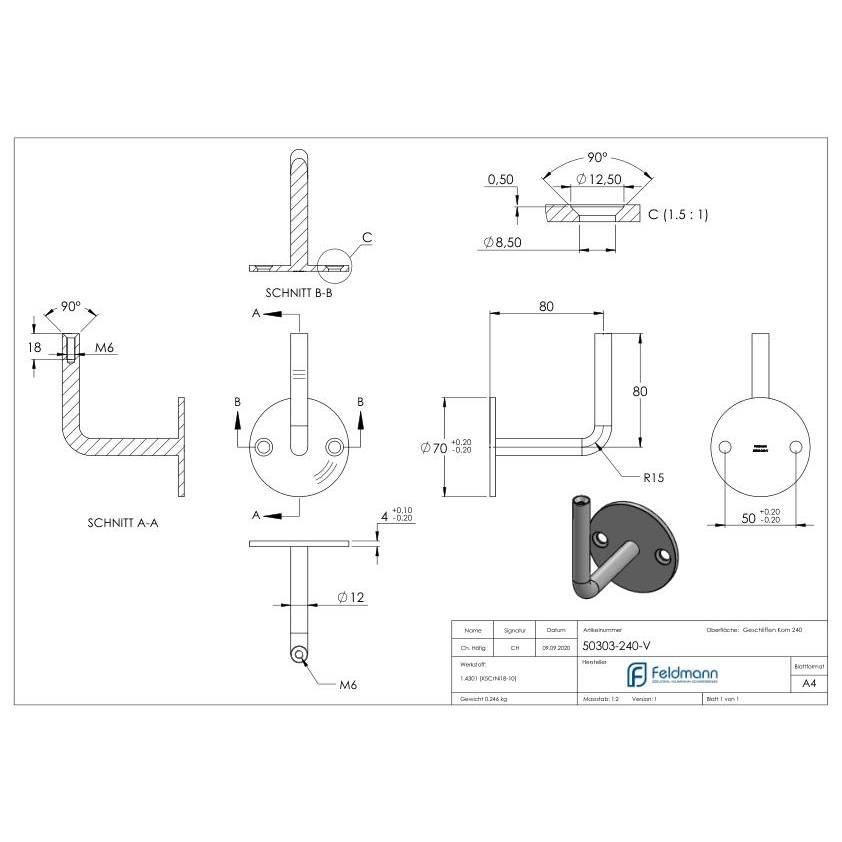

Handrail bracket for screwing on the handrail connection plate, round plate 70x4mm and bracket 12mm top with internal thread M6, with 2x hole 8.5mm countersunk for M6, (blank and bracket welded), AISI304
| Article number | 50303-240-V |
| Weight in Kg | 0.241 |
| Length x Width x Height in mm | 112 x 68 x 83 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schrauben |
Number of mounting holes |
2 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
